Product Specification


Item	YZY-LL-266
Solar panel	6v 15W 34734718mm
LiFePO4 battery	3.2v 18Ah
Lamp power	100W
Led chip	100pcs SMD2835 (Philps/ Osram/ Bridgelux)
Working mode	light/ time/ remote control/ radar sensor
Charging time	8H
Working time	12H (3H 100% + 9H 30%）
Backup days	>7 days
Sensing distance	3-5M
Material	Die-casting Aluminum

PRODUCT FEATURES

▶ Solar street lights have two patents of our company, patented IC integrated controller and unique AI intelligent power distribution technology.
▶ Simple appearance design, Easy to transport and install.
▶ AI technology power energy saving control, 80% energy saving, can work time 12 hours one day and backup rainy days for 5 days
▶ A variety of working modes, light control, time control, radar sensing and remote control, to ensure automatic lighting at night, automatically turn off the lights during the day
▶ Under the same configuration, the brightness is 20% higher than the normal, and 5 times longer rainy & cloudy backup time than the normal.
▶ Has the Auto-testing function in the first 2 min, to run and check all the process like turn on the computer , much more intelligent

▶ Widely application (home, garden, yard, farm, community road, industrial zone, school, etc.)

SOLAR STREET LIGHT details

Good quality starts with details

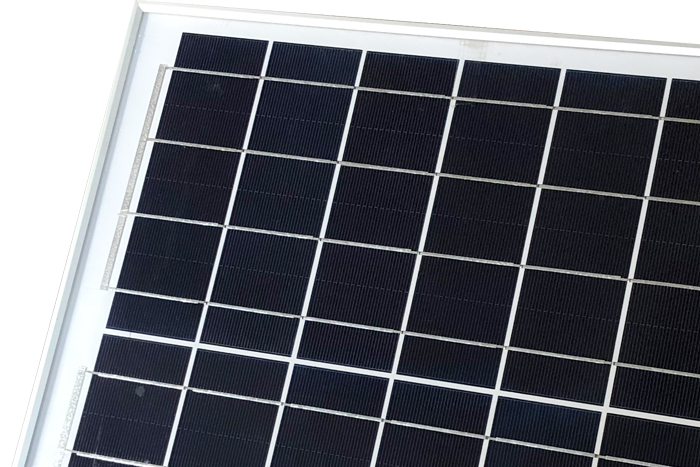

Class A solar panel

100w led solar street light adopt 30W class A monocrystalline silicon solar panel, high conversion rate and long life; thicker lamp arm and aluminum frame can better protect the solar panel

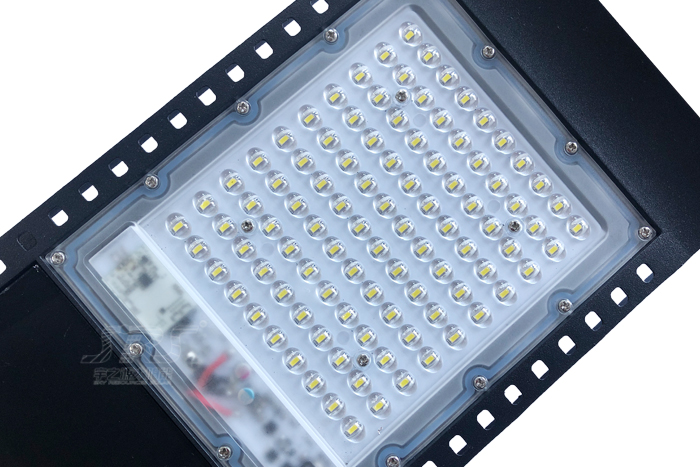

Import led chips

Solar wall mounted street light adopt imported 100pcs SMD2835 led chips, high lumens, 160lm/w, less light decay ,no stroboscopichigh bright and long life.

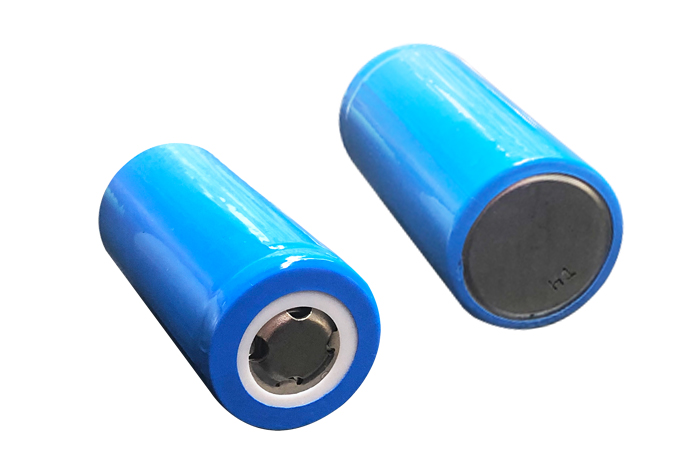

Brand new LiFePO4 Battery

solar street lights with inbuilt lithium ion battery use brand new LiFePO4 battery, large capacity, a deep cycle of more than 2000, compare with second-hand battery. its life is 3-5 times longer

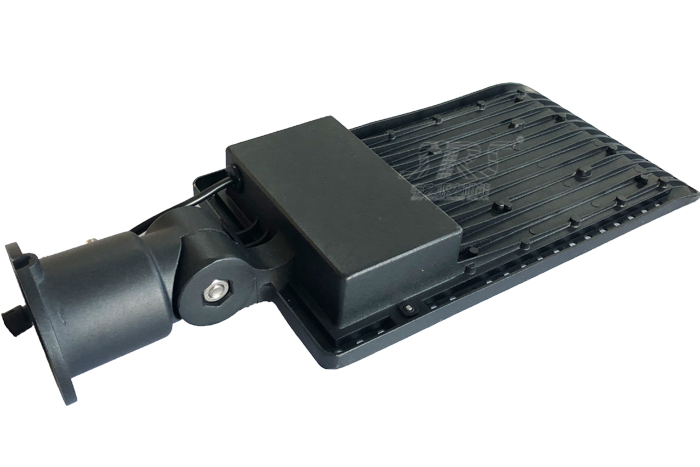

Die-casting Aluminum housing

Integrated solar led street light use die-casting aluminum housing,strong hardness, not easy to deform, efficient heat dissipation, waterproof and anticorrosive, high temperature resistant.

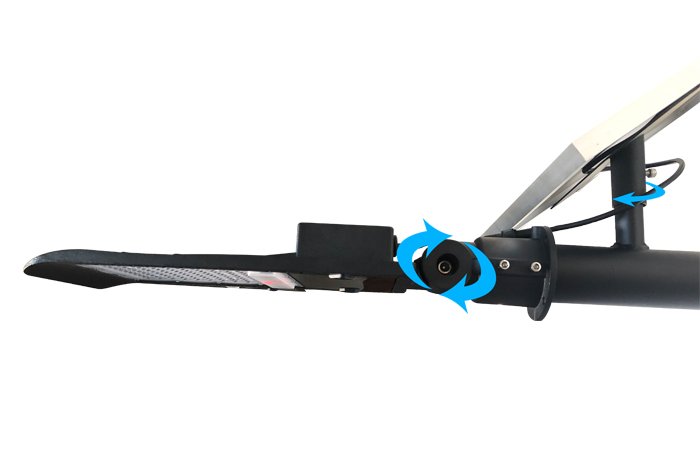

Adjust angle

Solar panel can be adjusted by 360 degree, led lamp can be adjusted by 120 degrees, and the illumination range can be changed, wide range of use

Remote control

REMOTE CONTROL INTRODUCTION

1.Test mode: 15min testing (press one); turn on the light even if day and night, and continuous working till battery exhausted (quick press twice)
2.Summer mode: 3 hrs 100% brightness ,the rest 9hrs with radar sensor, 100% brightness will be when the object is sensed, and energy saving mode is not sensed.
3.Sensor mode: 100% brightness will be when the object is sensed, and energy saving mode is not sensed.
4.5H working mode: first 3hrs 100% brightness, the rest 2hrs into sensor mode.
5.Winter mode: First 3H 100% brightness, then 9H energy-saving induction mode, 60% brightness induct people, when people leave, the light enters the energy-saving mode;
6.Auto mode: battery full capacity working with summer mode, battery not full capacity work with sensor mode.
7.The whole night working mode with sensor.
8.Turn off the light
A remote control can control multiple solar street lights, a variety of control modes, to meet different needs.
