Custom Solar Flood Lamp High Power 200w 240w 300w

PRODUCT SPECIFICATION


Item	YZY-LL-115	YZY-LL-116	YZY-LL-117
Solar panel	6V/ 20W 34745018mm	6V/ 30W 65035030mm	6v/ 35W 65035530mm
LiFePO4 battery	3.2V 18Ah	3.2V 30Ah	3.2V 36Ah
Power	80W	144W	240W
LED source	80pcs SMD2835	144pcs SMD2835	240pcs SMD2835
Backup days	>5 days	>7 days	>7 days
Recoomnded installaton height	4-5M	5-6M	6-8M
CCT	6000K
Working mode	light control/ time control/remote control
Charging time	6-8hrs
Working time	12 hrs/day
Cable	5M
Sensing distance	>5m
Material	Aluminum+PC

PRODUCT FEATURES

▶ High power solar flood light use SRS patent smart digital controller and AI intelligent technology.
▶ Through smart digital controller, led flood light solar save 80% power, backup >7 days. Compared to traditional same configuration solar flood lights,the backup rainy days of SRS solar floodlight is longer, and the brightness is higher.
▶ According to customer requirements, solar flood lamp can be customized by AI smart technology. It can increase solar flood light brightness or backup rainy days.
▶ Solar led flood light beam angle is 130 degree, wide illumination area, imported led chip, high lumen, high brightness.
▶ Remote controller solar powered flood light,lighting control, time control, radar sensor, multiple working modes.
▶ Widely application (home, garden, yard, farm, community road, industrial zone, school, etc.)

这里可以自定义设置

Product details

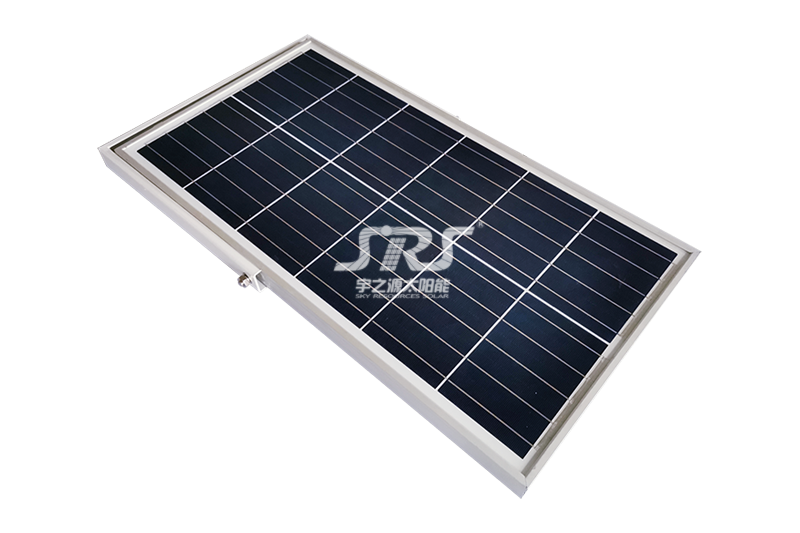

Solar panel

High quality A grade polycrystalline solar panel, converting electric energy with fast and stable speed, wide aluminum frame, durable and fast heat dissipation.

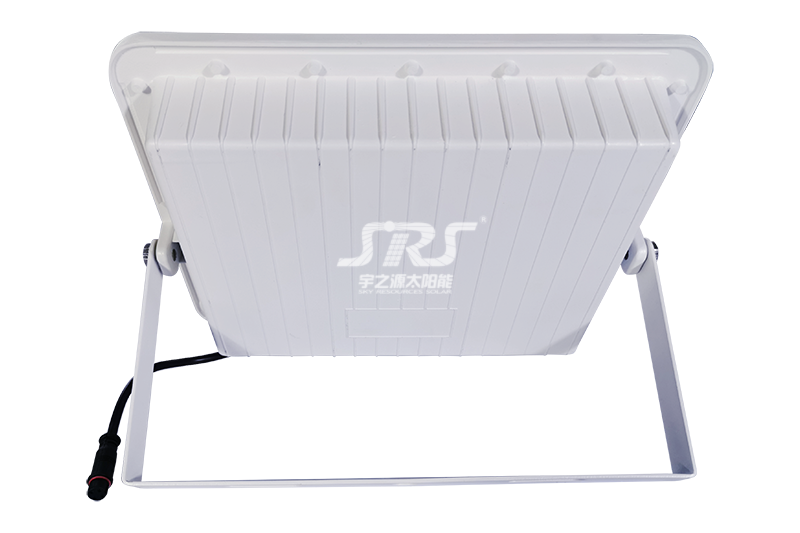

Die-casting Aluminum

Die-cast aluminum housing, resistant to high temperature, fast heat dissipation, corrosion resistance, rust-free, reduce dust ingress, and has good waterproof performance. The lamp bracket can adjust the angle 120 degrees,change the irradiation range.

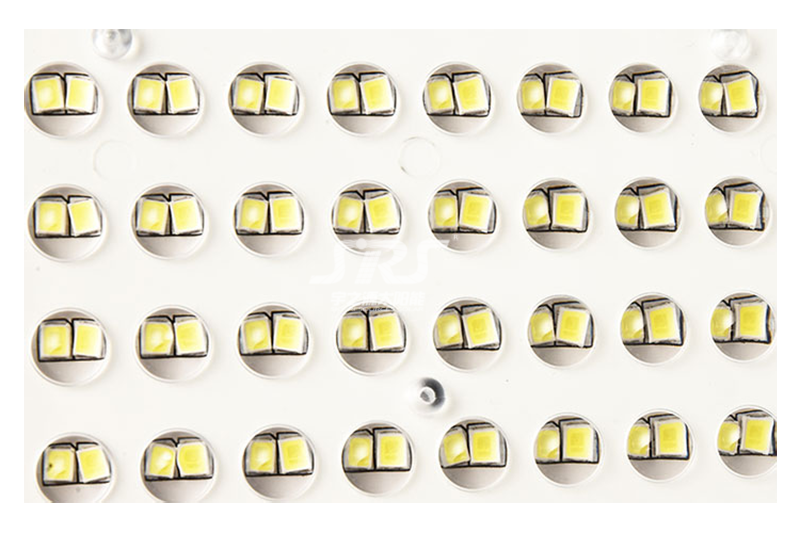

LED Chip

Imported high brightness LED chip (bridgelux, Philips, Orsam), low power consumption, high efficiency, high lumen, long life, long-lasting light stability

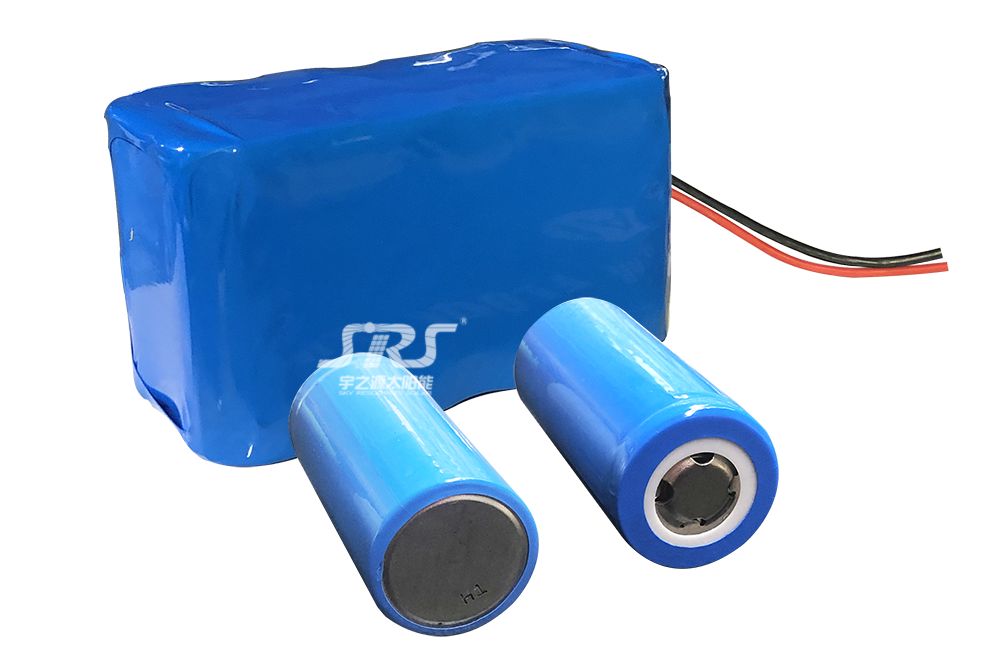

Brand New liFePO4 battery

Use brand new 36AH LiFePO4,has large capacity, more endurance performance, more than 2000 deep cycle times. The brand new lithium battery’s lifespan is 3-5 times of the used battery, with overcharge protection.

Remote control

REMOTE CONTROL INTRODUCTION

1.Turn off the light
2.Test mode: 15min testing (press one); turn on the light even if day and night, and continuous working till battery exhausted (quick press twice)
3.Summer mode: 3hrs 100% brightness ,the rest 9hrs with radar sensor, 100% brightness will be when the object is sensed, and energy saving mode is not sensed.
4.Sensor mode: 100% brightness will be when the object is sensed, and energy saving mode is not sensed.
5.5hrs working mode: first 3hrs 100% brightness, the rest 2hrs into sensor mode.
6.Winter mode: First 3H 100% brightness, then 9H energy-saving induction mode, 60% brightness induct people, when people leave, the light enters the energy-saving mode;
7.Auto mode: battery full capacity working with summer mode, battery not full capacity work with sensor mode.
8.The whole night working mode with sensor.
Note: the remote control must first be loaded into the battery before use.

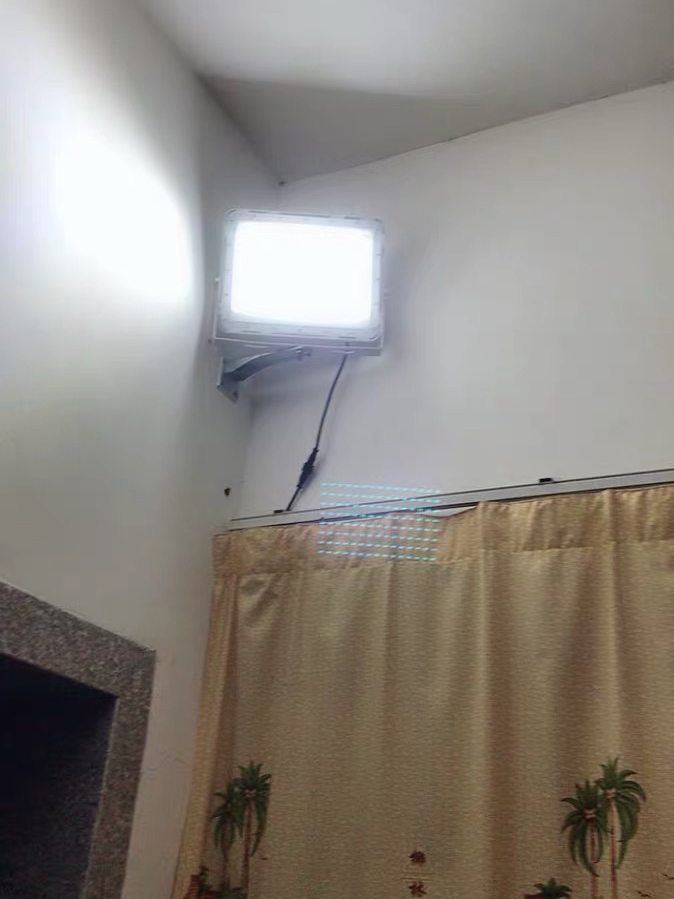

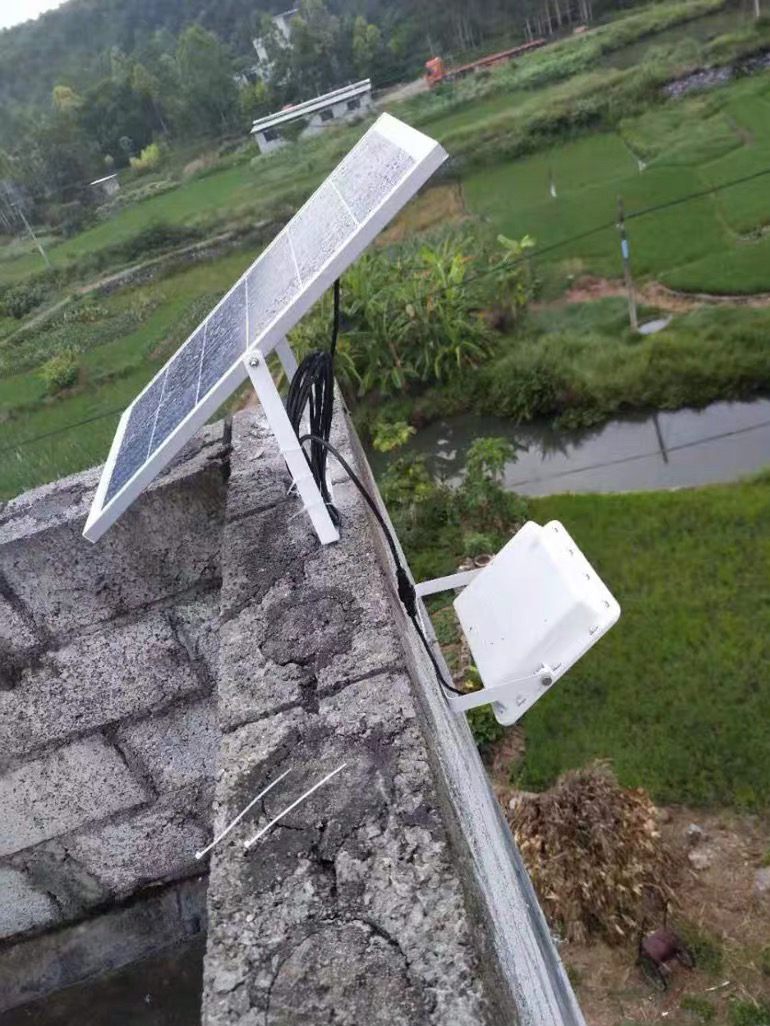

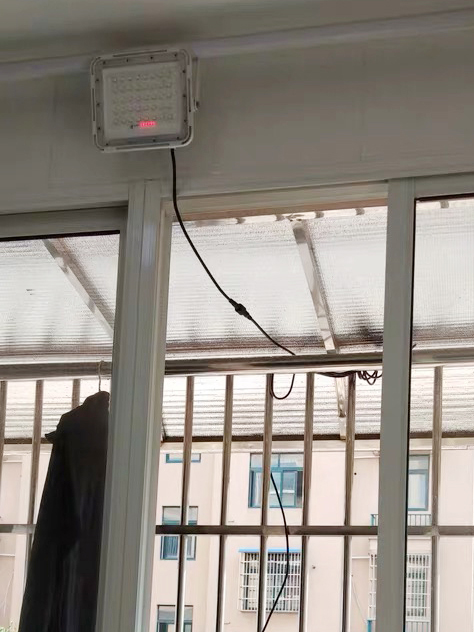

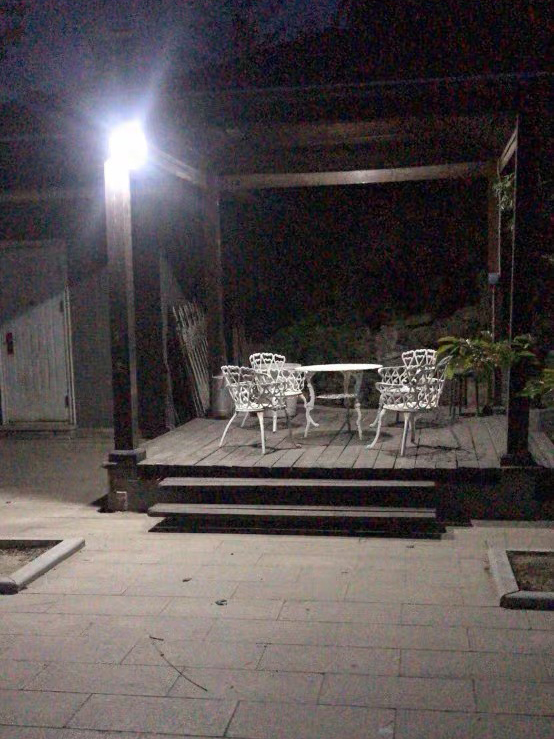

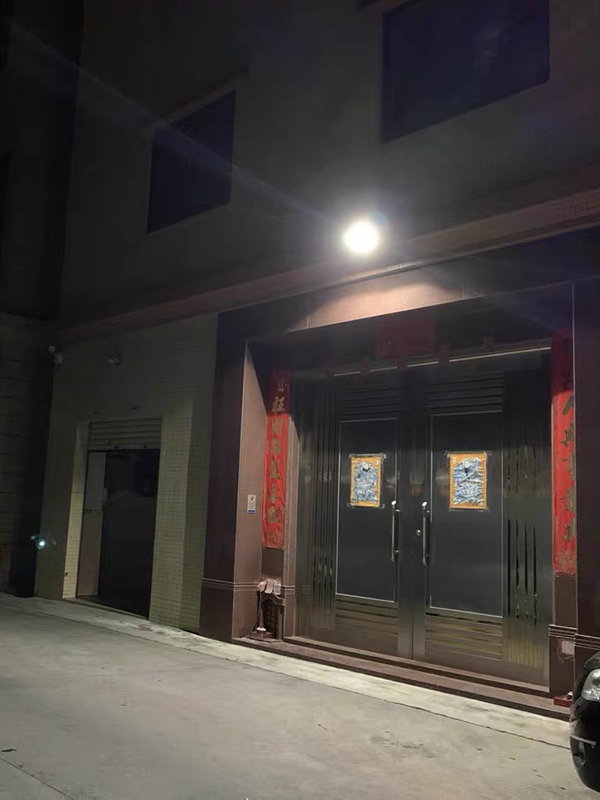

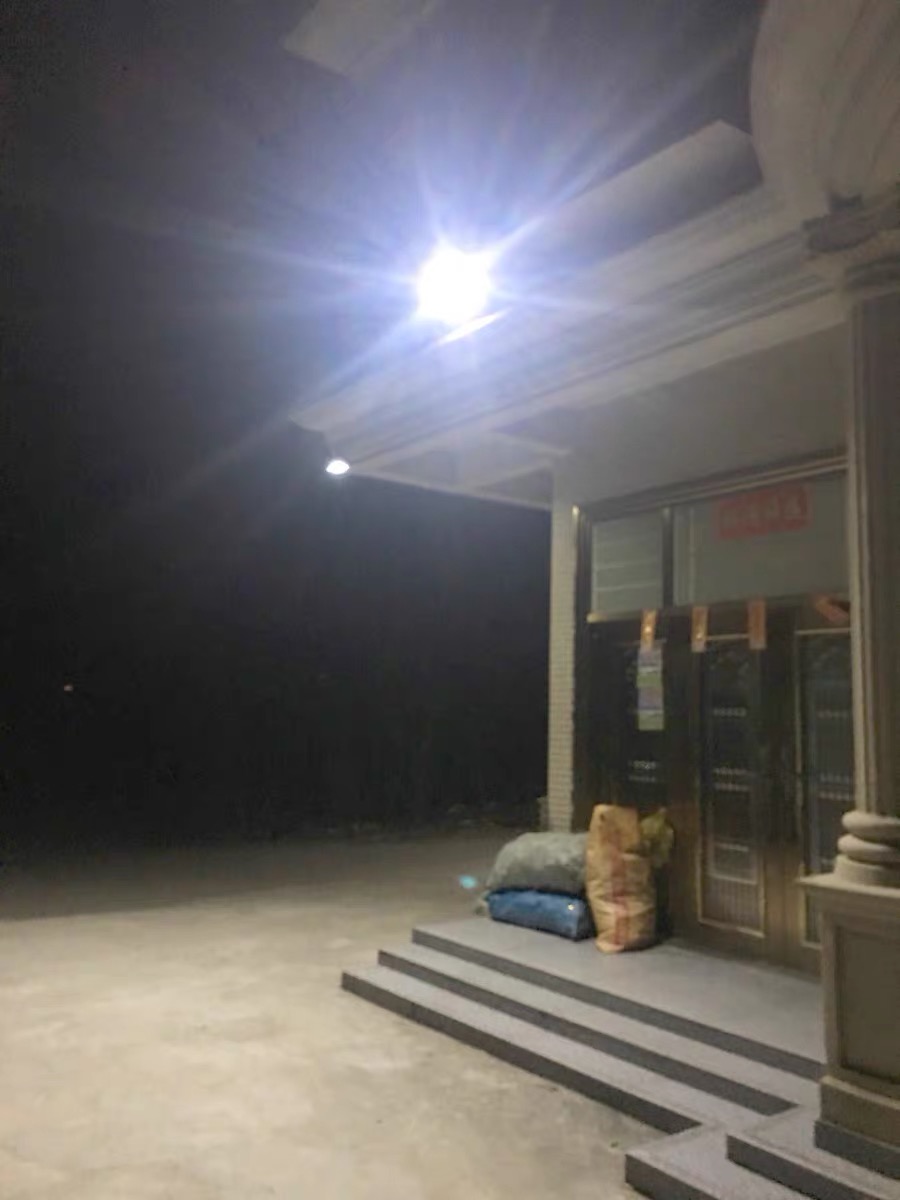

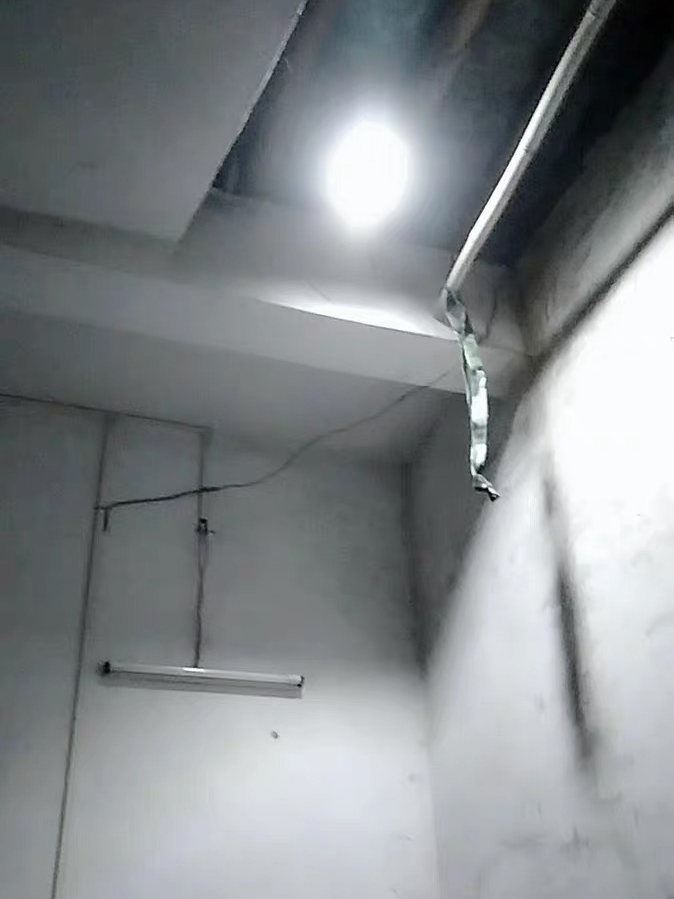

Product Application
