Custom Best Solar Panel Street Light 120w Yzy-ll-609

SOLAR STREET LIGHT Specification


Item	YZY-LL-609
Solar Panel	18v 100w solar cells from LDK or SUNTECH
Led source	SMD3030 120PCS 120W
LiFePO4 Battery	12.8V 42AH
Working mode	Light control/ Timer control
Working time	12 hours
Patent Controller	MPPT controller 20A
Backup days	>7 days
Installation height	6-8m
Center illuminance	26 lux (7.5 height)

PRODUCT FEATURES

▶ SRS solar street lights use the digital constant current controller which has won the national invention patent gold award. With the same lighting time, it can save 80% electricity, and the backup days can reach 30 days. The backup days are 5 times of the traditional solar street lights
▶ Using AI intelligent technology, SRS high brightness solar street light can ensure lighting all night, and the power can be freely distributed, which can increase the brightness or backup days.
▶ With the patented controller and AI intelligent technology, imported high brightness led chips, up to 200lm/W. the brightness of SRS solar power street light is twice of conventional technology solar street light
▶ The watt of solar street lamp from 10W to 300W, can be customized according to customer requirements. Factory direct sales, price concessions.

▶ SRS solar street light is charged during the day and automatically lights up at night, with zero electricity charge throughout the year. Installation without wiring, fast and convenient. Save installation cost.

▶ It is widely used in engineering construction, rural construction, courtyard, square, community, park, basketball court, etc.

solar street light details

Good quality starts with details

High quality solar panel

High quality class A polycrystalline silicon solar panel, 95% light transmittance, high conversion efficiency, widened aluminum alloy frame, enhanced impact resistance

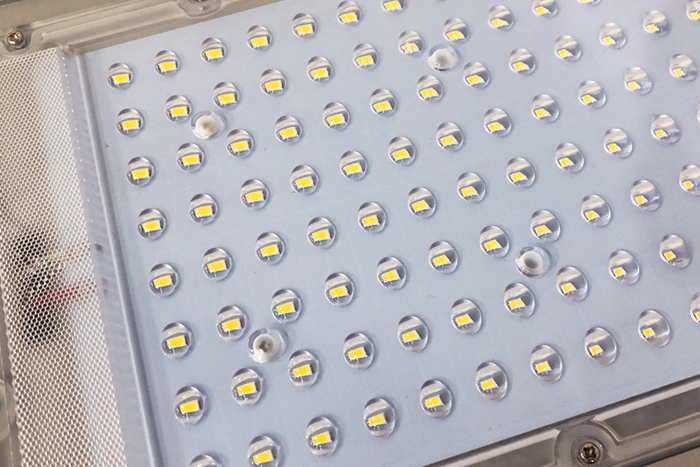

Import led chip

It adopts imported Bridgelux, OSRAM and Philips lamp beads, with an average life of more than 50000 hours, stable performance, high brightness, low light loss, long life and long durability

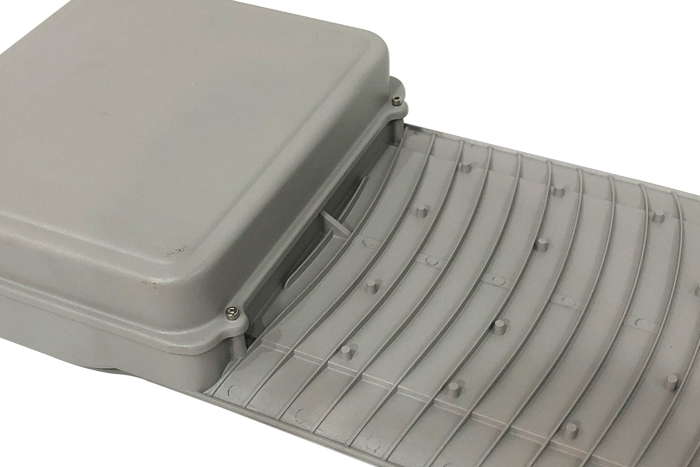

Die-casting aluminum

Thick die-casting aluminum, solid lamp body, waterproof, rust proof and dustproof, protection grade IP66

Gel-caid battery

SRS gel-caid battery has nano waterproof technology,it is suitable for bottom temperature environment, super capacity, long endurance, corrosion resistance and stable performance

SRS patent digital controller

the solar street light uses the patent intelligent digital controller invented by SRS, compared with the traditional solar street lamp, SRS solar street lamp can save 80% of the electricity, double the brightness, the life of the solar street lamp system is more than 10 years, with a variety of control modes, and the controller has won the gold medal of the national invention patent

Hot dip galvanized lamp pole

Hot dip galvanized lamp pole, one-time roll forming, high strength, corrosion resistance, electrostatic spray painting on the surface, good quality, no rust and fading in 20 years

IP67 waterproof wire

SRS patented precision waterproof wire, IP67, prevents electric leakage, prevents rainwater from entering the wire and causing short circuit

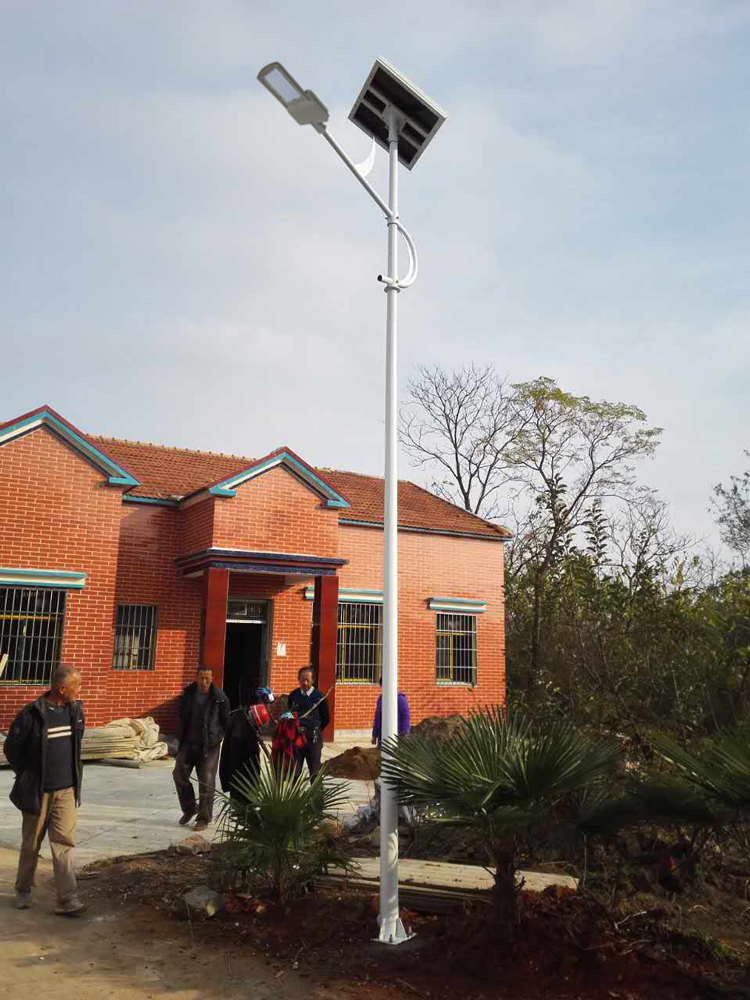

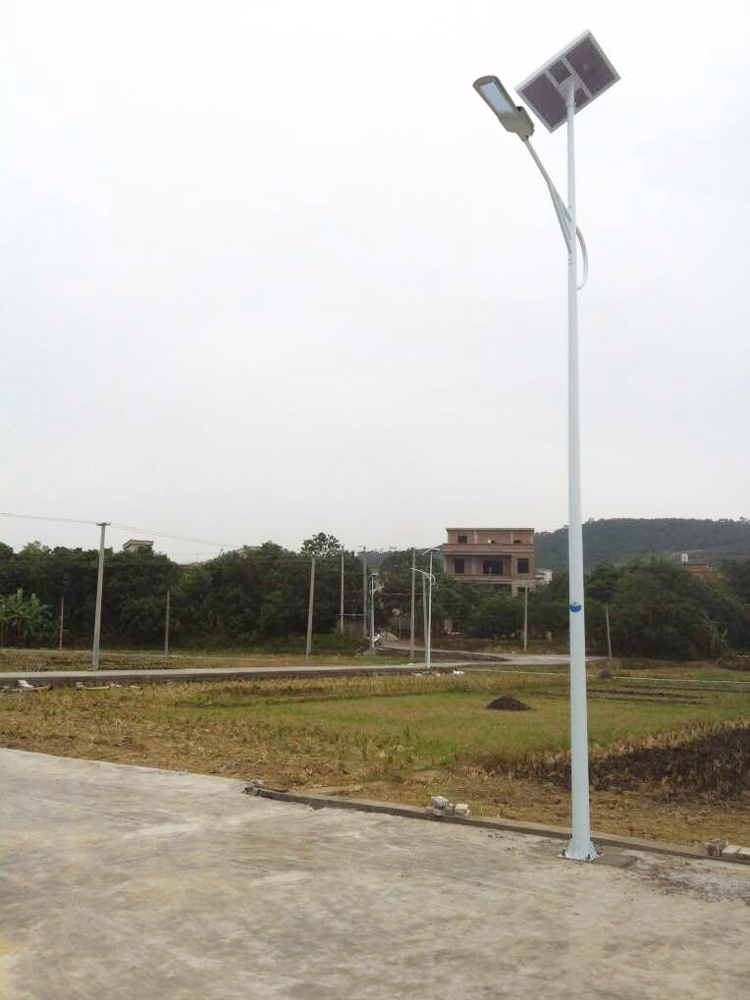

Product Application

Applicable to engineering construction, rural areas, courtyards, squares, communities, etc
